Stäubli MC4 Installation & Maintenance: The Small Rules That Protect Your Solar Project for 25 Years
Even the best genuine Stäubli MC4 connectors can underperform or fail early when installed or maintained incorrectly. Many traders and installers focus only on product quality, but overlook simple on-site rules that directly affect safety, yield and long-term reliability.
This blog covers easy-to-follow installation best practices and routine maintenance checks to maximize the lifespan of your Stäubli connectors and avoid avoidable failures.
1. Critical Installation Rules for Stäubli MC4
Use only certified tools & PV cables
Always use Stäubli-recommended crimping and torque tools. Improper crimping causes high resistance and overheating. Use only certified solar PV cables to ensure sealing and stability.
Torque to the correct specification
Tighten to 3.4–3.5 N·m using a torque wrench.
- Too loose → moisture enters, corrosion occurs
- Too tight → thread damage, loose connection over time
Listen for the “click” and pull-test

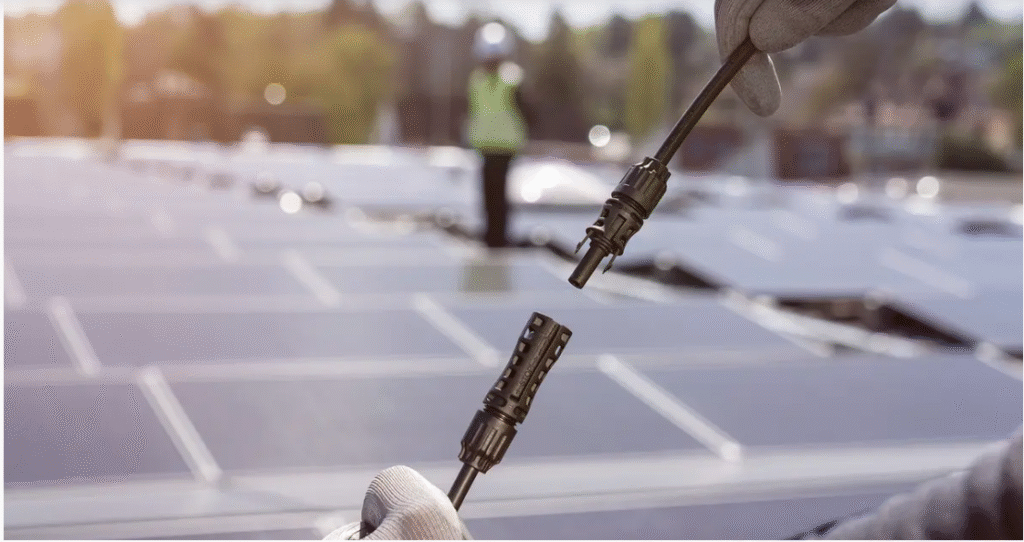

When mating connectors, push until you hear a clear click. Gently pull to confirm locking. A poorly seated connector is the top cause of DC-side failures.
Never mix brands
Do not mate Stäubli connectors with other brands. Mismatched interfaces break sealing and create safety hazards.
Protect unpaired connectors
Use dust/waterproof caps when connectors are not in use. Dirt, sand and moisture cause poor contact and accelerated aging.
Avoid cable tension at the seal
Leave at least 20mm of straight cable before bending to prevent stress on the sealing area and water intrusion.
2. On-Site Maintenance Checklist for Stäubli MC4
Add these quick checks to your routine O&M to catch issues early:
Visual inspection
- Look for cracks, deformation or discoloration
- Check for water marks, rust or oxidation inside
- Ensure seals are intact and not compressed
Tightness & locking check
Confirm connectors are fully locked and nuts are properly torqued. Loose connections lead to heat buildup.
Clean contaminated connectors
Wipe dust, sand or salt residue with a clean, dry cloth. Do not use chemicals or corrosive cleaners.
Replace damaged parts immediately
If seals are broken, housing is cracked or contacts are corroded, replace the connector right away to avoid system risk.
3. Why This Matters for Traders & Projects
- Reduces on-site failures and maintenance costs
- Passes inspections in Europe, North America, Middle East and Africa
- Preserves bankability and insurance eligibility
- Extends connector life to match the 25-year PV system lifespan
Many project problems are not caused by low-quality products, but by small installation mistakes that add up over time.
Conclusion
Genuine Stäubli MC4 connectors deliver superior reliability only when installed and maintained properly. Following basic best practices eliminates most DC connection risks and protects your project ROI for decades.
